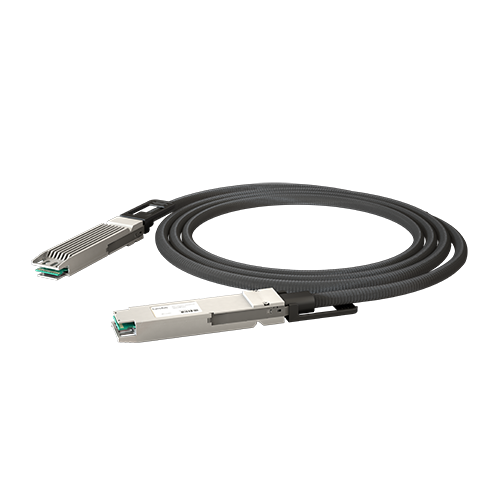

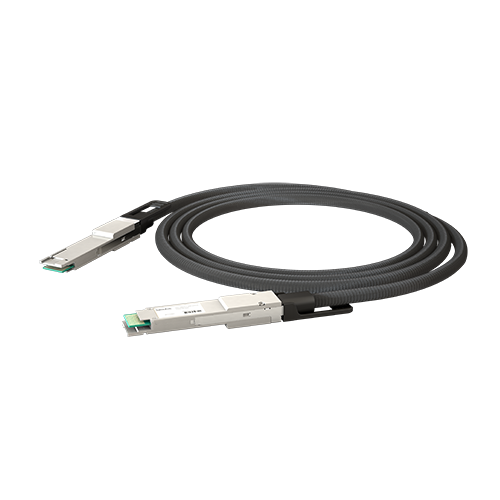

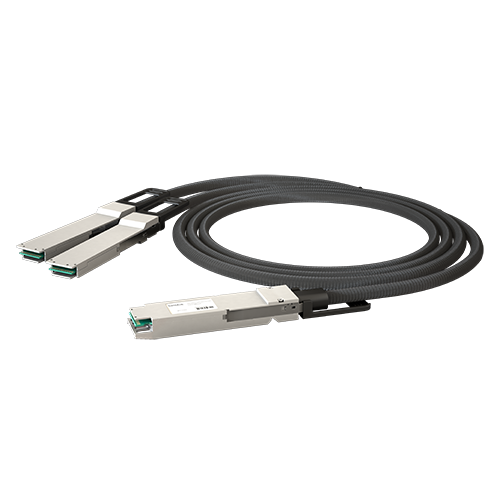

High speed cables. AEC
Lumulus Active Electrical Cables (AECs) extend copper connections in data centers, offering up to 800G data rates with QSFP and OSFP form factors. Featuring integrated electronics for enhanced signal strength and flexibility, they excel in high-performance, high-density applications requiring greater reach and reliability. Built to IEEE standards, they ensure superior performance for modern data center needs.
Advanced Performance and DSP Retimer
- DSP retimer solution supporting up to 8x112 Gb/s PAM4
- Speeds up to 800G
Energy Efficiency and Optimized Temperature
- Low power consumption: 800G 12W, 400G 6.5W
- 0°C to 70°C temp
Compatibility and Compliance with Industry Standards
- Available in QSFP-DD, OSFP and QSFP112 form factors
- CMIS Compliant
- MSA Compliant
- IEEE Compliant
- RoHS Compliant
- InfiniBand support
- Hot pluggable
