100G QSFP28 to 4x25G SFP28 AOC

LAQP-LU4xxxC

Max Reach: 100 meters

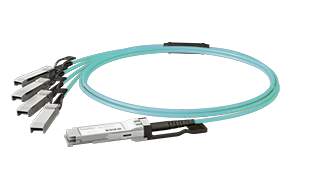

Image of LAQP-LU4xxxC

Key Features

Support 4x25GBASE-SR application
Multi rate of up to 25.78125Gbps per lane
+3.3V single power supply
Low power consumption
UL certification cables (optional)
Operating case temp Commercial: 0°C to +70 °C
RoHS compliant

Applications

4x25Gbe-SR
Other optical links

Supported Standards

SFF-8665 MSA
SFF-8636 MSA
SFF-8431 MSA
SFF-8472 MSA
IEEE 802.3bm

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	Fiber Type	Temp. Range	Specification sheet
	LAQP-LU4X10C	100G QSFP28 to 4x25G SFP28 AOC	1:4	100m	100Gb	QSFP28	25Gb	SFP28	LSZH MMF	C
	LAQP-LU4100C	100G QSFP28 to 4x25G SFP28 AOC	1:4	10m	100Gb	QSFP28	25Gb	SFP28	LSZH MMF	C
	LAQP-LU4010C	100G QSFP28 to 4x25G SFP28 AOC	1:4	1m	100Gb	QSFP28	25Gb	QSFP28	LSZH MMF	C
