200G QSFP56 DAC

LEQQ-NK1xxxC

Max Reach: 3 meters

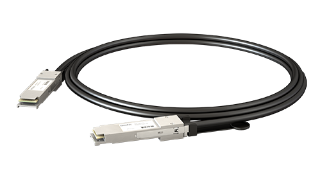

Image of LEQQ-NK1xxxC

Key Features

Support 4x53.125 PAM4
Single Wire Size: 26AWG~30AWG
Maximum power consumption:<0.05W each end
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
BER < 10^-15
RoHS Compliance
InfiniBand HDR compatible

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

QSFP MSA,SFF-8665
CMIS 4.0/SFF 8636
IEEE 802.3cd

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
	LEQQ-NK1030C	200G QSFP56 to 200G QSFP56 DAC	1:1	3m	200Gb	QSFP56	200Gb	-	26 AWG	C
	LEQQ-NK1020C	200G QSFP56 to 200G QSFP56 DAC	1:1	2m	200Gb	QSFP56	200Gb	-	26 AWG	C
	LEQQ-NK1010C	200G QSFP56 to 200G QSFP56	1:1	1m	200Gb	QSFP56	200Gb	-	30 AWG	C
