25G SFP28 AOC

LAPP-UU1XXXC

Max Reach: 100 meters

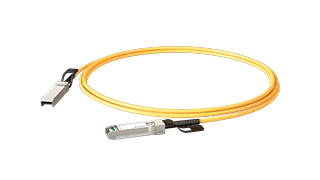

Image of LAPP-UU1XXXC

Key Features

Data rate up to 25.78125Gb/s
850nm VCSEL transmitter and PIN receiver
3.3V power supply
Maximum power dissipation:1W per end
Operation case temperature: 0 to 70°C
Maximum link length of 70m on OM3 and 100m on OM4 MMF
RoHS compliant

Applications

25G Ethernet
Enterprise, Data Center
Switches, Routers

Supported Standards

SFP28 MSA
IEEE 802.3by

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	Fiber Type	Temp. Range	Specification sheet
	LAPP-UU1X10C	25G SFP28 to 25G SFP28 AOC	1:1	100m	25Gb	SFP28	25Gb	SFP28	LSZH MMF	C
	LAPP-UU1100C	25G SFP28 to 25G SFP28 AOC	1:1	10m	25Gb	SFP28	25Gb	SFP28	LSZH MMF	C
	LAPP-UU1010C	25G SFP28 to 25G SFP28 AOC	1:1	1m	25Gb	SFP28	25Gb	SFP28	LSZH MMF	C
