400G OSFP to 2X200G QSFP56 AOC

LAOP-PK2xxxC

Max Reach: 100 meters

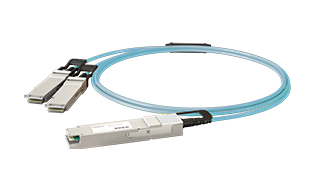

Image of LAOP-PK2xxxC

Key Features

8x50G PAM4 retimed 400GAUI-8 electrical interface
8x50G 850nm VCSEL array and PIN photo detector array
3.3V power supply
Power dissipation <8W each port
Commercial case temperature range of 0°C to 70°C
RoHS compliant
Maximum link length of 60m on OM3 or 100m on OM4/OM5 MMF

Applications

400G Ethernet
Data Center

Supported Standards

OSFP MSA
QSFP56 MSA
CMIS 5.0
IEEE 802.3

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	Fiber Type	Temp. Range	Specification sheet
	LAOP-PK2X10C	400G OSFP to 2x200G QSFP56 AOC	1:2	100m	400Gb	OSFP	200Gb	QSFP56	LSZH MMF	C
	LAOP-PK2100C	400G OSFP to 2x200G QSFP56 AOC	1:2	10m	400Gb	OSFP	200Gb	QSFP56	LSZH MMF	C
	LAOP-PK2010C	400G OSFP to 2x200G QSFP56 AOC	1:2	1m	400Gb	OSFP	200Gb	QSFP56	LSZH MMF	C
