800G OSFP to 2x400G QSFP112 ACC

LFOQ-QM2xxxC

Max Reach: 5 meters

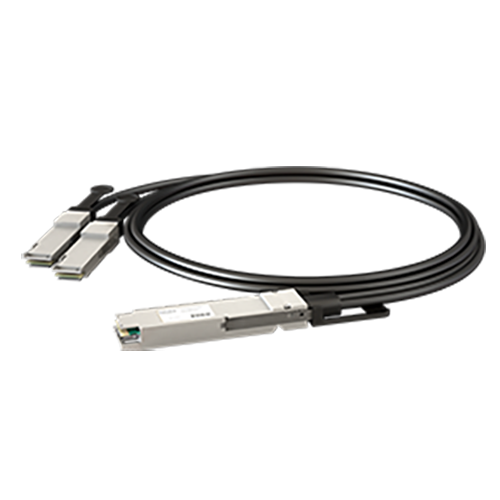

Image of LFOQ-QM2xxxC

Key Features

Compatible with IEEE 802.3ck
Supports aggregate data rates of 800 GB/s (PAM4)
Optimized construction to minimize insertion loss and crosstalk
Pull-to-release slide latch design
Straight and break-out assembly configurations available
Customized cable braid termination limits EMI radiation
Customizable EEPROM mapping for cable signature
30AWG through 26AWG cable uses 16 pairs of cables for overall softness
3.3V Power supply
Temperature Range: 0~ 70 °C
RoHs Compliant

Applications

Switches, servers and routers
Data Center networks
Storage area networks
High-performance computing
Telecommunication and wireless infrastructure
Medical diagnostics and networking
Test and measurement equipment

Supported Standards

800G Ethernet (IEEE 802.3 ck)
InfiniBand NDR

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
	LFOQ-QM2050C	800G OSFP to 2x400G QSFP112 ACC	1:2	5m	800Gb	OSFP	400Gb	QSFP112	26 AWG	C
	LFOQ-QM2045C	800G OSFP to 2x400G QSFP112 ACC	1:2	4.5m	800Gb	OSFP	400Gb	QSFP112	26 AWG	C
	LFOQ-QM2035C	800G OSFP to 2x400G QSFP112 ACC	1:2	3.5m	800Gb	OSFP	400Gb	QSFP112	28 AWG	C
	LFOQ-QM2030C	800G OSFP to 2x400G QSFP112 ACC	1:2	3m	800Gb	OSFP	400Gb	QSFP112	30 AWG	C
