800G OSFP to 4X 200G QSFP112 DAC

LEOQ-QM4xxxC

Max Reach: 2.5 meters

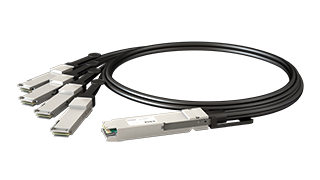

Image of LEOQ-QM4xxxC

Key Features

  • Compatible with IEEE 802.3ck
  • Supports aggregate data rates of 800Gbps(PAM4)
  • Optimized construction to minimize insertion loss and crosstalk
  • Pull-to-release slide latch design
  • Straight and break out assembly configurations available
  • Customized cable braid termination limits EMI radiation
  • Customizable EEPROM mapping for cable signature
  • 30AWG through 26AWG cable, uses 16 pairs of cables for overall softness
  • 3.3V Power supply
  • Temperature Range: 0~ 70 °C
  • RoHs Compliant

Applications

  • Switches, servers and routers
  • Data Center networks
  • Storage area networks
  • High-performance computing
  • Telecommunication and wireless infrastructure
  • Medical diagnostics and networking
  • Test and measurement equipment

Supported Standards

  • 800G Ethernet (IEEE 802.3ck)
  • InfiniBand NDR

Product specification

P/N Description Breakout Max Reach Terminal A Data Rate (Gb/s) Terminal A Package Terminal B Data Rate (Gb/s) Terminal B Package AWG Temp. Range Specification sheet
LEOQ-QM4025C LEOQ-QM4025C 800G OSFP to 4x200G QSFP112 DAC 1:4 2.5m 800Gb OSFP 200Gb QSFP112 26 AWG C
LEOQ-QM4015C LEOQ-QM4015C 800G OSFP to 4x200G QSFP112 DAC 1:4 1.5m 800Gb OSFP 200Gb QSFP112 28 AWG C
LEOQ-QM4005C LEOQ-QM4005C 800G OSFP to 4x200G QSFP112 DAC 1:4 0.5m 800Gb OSFP 200Gb QSFP112 30 AWG C

Request form

800G OSFP to 4X 200G QSFP112 DAC
