800G QSFP-DD AOC

LAGG-QM1xxxC

Max Reach: 100 meters

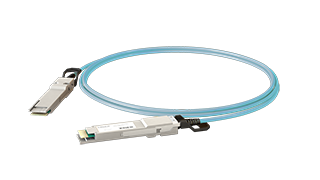

Image of LAGG-QM1xxxC

Key Features

8x100G PAM4 retimed 800GAUI-8 electrical interface
850nm VCSEL array and PIN photo detector array
Single 3.3V power supply
Power dissipation <15W(800G End)
Commercial case temperature range of 0°C to 70°C
RoHS compliant
Maximum link length of 60m on OM3 MMF or 100m on OM4/OM5

Applications

800G Ethernet
Data Center

Supported Standards

QSFP-DD MSA
CMIS 4.0IEEE 802.3

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	Fiber Type	Temp. Range	Specification sheet
	LAGG-QM1X10C	800G QSFP-DD to 800G QSFP-DD AOC	1:1	100m	800Gb	QSFP-DD	800Gb	QSFP-DD	LSZH MMF	C
	LAGG-QM1100C	800G QSFP-DD to 800G QSFP-DD AOC	1:1	10m	800Gb	QSFP-DD	800Gb	QSFP-DD	LSZH MMF	C
	LAGG-QM1010C	800G QSFP-DD to 800G QSFP-DD AOC	1:1	1m	800Gb	QSFP-DD	800Gb	QSFP-DD	LSZH MMF	C
