800G QSFP-DD to 2x400G QSFP112 AEC

LGGQ-QM2xxxC

Max Reach: 6 meters

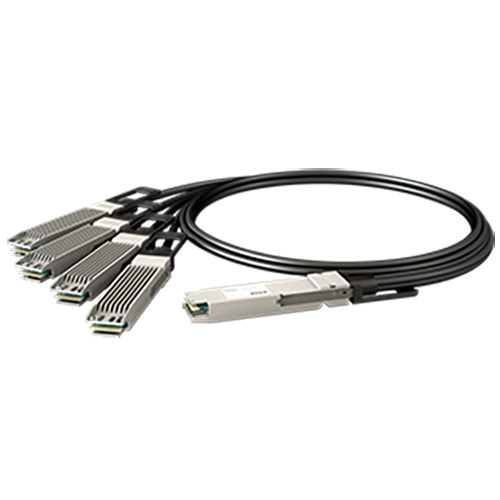

Image of LGGQ-QM2xxxC

Key Features

High-performance 8x112 Gb/s PAM4 DSP retimer solution
Support 800G QSFP-DD to 800G QSFP-DD
Support 800G QSFP-DD breakout to 2x400G QSFP112
Single Wire Size: 26AWG~32AWG
Maximum power consumption: 12W (800G), 6.5W (400G)
Case temperature range: 0°C to 70°C
3.3V Power Supply
Hot Pluggable
BER < 10^-15 (post FEC)
RoHS Compliance

Applications

Data center & Networking Equipment
Servers/Storage Devices
High Performance Computing (HPC)
Switches/Routers

Supported Standards

QSFP-DD MSA
CMIS 5.2
SFF 8665
IEEE 802.3ck

Product specification

	P/N	Description	Breakout	Max Reach	Terminal A Data Rate (Gb/s)	Terminal A Package	Terminal B Data Rate (Gb/s)	Terminal B Package	AWG	Temp. Range	Specification sheet
	LGGQ-QM2060C	800G QSFP-DD to 2x400G QSFP112 AEC	1:2	6m	800Gb	QSFP-DD	400Gb	QSFP112	28 AWG	C
	LGGQ-QM2045C	800G QSFP-DD to 2x400G QSFP112 AEC	1:2	4.5m	800Gb	QSFP-DD	400Gb	QSFP112	28 AWG	C
	LGGQ-QM2010C	800G QSFP-DD to 2x400G QSFP112 AEC	1:2	1m	800Gb	QSFP-DD	400Gb	QSFP112	30 AWG	C
